HANDLERS

For over 26 years we have been representing our partner Cohu, expert in test handlers. Their high tech equipment allows temperature testing and sorting for singulated devices, strips, MEMs, or sensors.

Cohu’s equipment range provides efficient solutions for your test applications including  :

  • Lead or lead free devices,
  • Singulated devices or device strips,
  • Full temperature range testing (from -55°C to +175°C)
Logo Cohu

PICK & PLACE TEST HANDLERS

MT9510 XP



Tri-Temp Pick&Place test handler

  • Outstanding temperature performance
  • Proven on site reliability

Principal Features :

  • Up to 8 parallel sites
  • Ambient-hot or tri-Temp from -55°C to +175°C
  • Conversion kits for QFP, BGA, PGA, QFN, and others
  • 0.38s index time
  • 5300 UPH max
  • Contacting: Standard, HF, Kelvin
  • Installed base : > 750 machines
  • Small footprint : 1.19m x 1.57m

Handler Solution for :

  • Small and large devices with pitches down to 0.3mm
  • Device size from 2×2 to 70x70mm
  • Device thickness from 0.5mm
  • Wide range of packages: DIP, BGA, PGA, SO, QFP, QFN, LGA,TO, CLCC, PLCC, MCM, WLP

Applications

  • Sensor test
  • Automotive power devices
  • RF and communication
  • Logic circuits, amplifiers, linear
  • Processors and DSPs

Options :

  • Open or closed loop ionisation for ESD control
  • Raisable feet, also available with levelling function
  • Multiple interfaces GPIB, SECS/GEM, ethernet
  • Higher contact force

The MT9510 allows reliable testing at cold, ambiant, hot temperature.

The conversion kits allow to adapt to different package types depending on your needs

The MT9510x16 is the 16 parallel site version

DELTA ECLIPSE

Configurable according to your needs.

Principal Features :

  • Up to 16 parallel sites
  • Ambient-hot from +50°C to +155°C, -55°C tri-temp upgradable on site
  • Conversion kits for QFP, BGA, PGA, QFN, and others
  • Up to 13 000 UPH
  • Chiller for cold operation (no LN2 required)

Handler solution for :

  • T-Core temperature control
  • Power dissipation up to 1000 W
  • Device dimensions 3×3 mm to 80×80 mm

Applications

  • Sensor test
  • Automotive power devices
  • RF and communication
  • Logic circuits, amplifiers, linear
  • Processors and DSPs

Options (Examples) :

  • RFID reader for JEDEC trays
  • Higher contact force : 207 or 500 Kgs
  • Chiller -70°C
MATRIX

Configurable according to your needs.

Principal Features :

  • Up to 32 parallel sites
  • Tri temp from -55°C to +155°C (option : +175°) – Chamberless design
  • Conversion kits for QFP, BGA, PGA, QFN, and others
  • Up to 16 000 UPH
  • Individual temperature control for each test site
  • Device sizes from 3 x 3 mm to 51 x 51 mm
  • Colour detection for trays

Applications

  • Sensor test
  • Automotive power devices
  • RF and communication
  • Logic circuits, amplifiers, linear
  • Processors and DSPs

Options (Examples) :

  • Adjustable test site pitch
  • Higher contact force 480 or 567 Kgs
  • NVCore vision system
  • Ionisation
  • Active Thermal Control – for up to 80W power dissipation

GRAVITY HANDLERS

MT93xx

MT9308 discontinued, but expert support available – please contact us

MT9928xm

Principal Features :

  • Up to 8 parallel sites
  • Temperature: ambient-hot or tritemp. 55° to 155°C (175 or 200°C on request)
  • Quick and reliable conversion kit exchange for SO and MLF/QFN packages
  • Up to. 28000 UPH
  • Contacts : Standard, HF, high current and Kelvin
  • Loader : Tubes, metal magazines, bowl feeder
  • Unloading : Tubes, metal magazines, bulk
  • Installed base : >1300 machines

Handler solution for :

  • Small and medium devices down to 0.4mm pitch
  • Device length from 2 to 21mm
  • Wide range of device types: DIP, BGA, SO, QFN, LGA,TO

Applications

  • Sensor test
  • Automotive power devices
  • RF and communication
  • Logic circuits, amplifiers, linear
  • Flash memories
RASCO SO 1000

Principal features :

  • Up to 4 parallel sites
  • Temperature -60° to +160°C
  • Conversion kits for  QFN 3×3 to QFN 12 or MSOP 118 to SO 430
  • Up to 14 400 UPH
  • Contacts : Standard, HF, high current and Kelvin
  • Tube loading and unloading
  • The best ROI ! Many customers have selected it for its features !!

Applications :

  • Sensor test
  • Automotive power devices
  • RF and communication
  • Logic circuits, amplifiers, linear
  • Flash memories
RASCO SO 2000

Principal features :

  • Up to 4 parallel sites
  • Temperature -60° to +175°C
  • Conversion kits for  QFN 1.4×1.4 to QFN 12 or MSOP 118 to SO 430
  • Up to 14 400 UPH
  • Contacts : Standard, HF, high current and Kelvin
  • Tube loading and unloading
  • “Split Kit” possible -> 1 half equipped with 1 kit, 2nd half equipped with another kit
  • Loader : Tubes or bowl feeder
  • Unloading : Tubes or bulk
  • Small footprint 810x1021mm – 240 kg

Applications :

  • Sensor test
  • Automotive power devices
  • RF and communication
  • Logic circuits, amplifiers, linear
  • Flash memories

STRIP TEST – INCARRIER®

InCarrier®

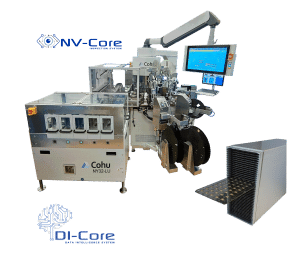

NY32-LU – Loader unloader for In Carrier

Strip like device carrier for singulated devices.

> No device handling after test

> Combines the advantages of testing singulated devices with those on a strip.



Principal Features :

  • Full device traceability
  • Re-test remains possible on base handler.
  • Useable as a transport medium prior to burn-in before final test
  • Compatible input media : JEDEC trays, tubes, bulk, wafer
  • Compatible output media : JEDEC trays, tubes, bulk, Tape&Reel

Handler Solution for :

  • Lead and lead free devices
  • Large and small devices down to 0.8×0.8mm
  • ASIC test
  • MEMs test and calibration

MEMS

Configurable based on your needs

  • MEMs module easily bolts on to a suitable standard Cohu handler
  • Full temperature range available
  • Easy conversion to other packages
  • Experienced support team

Examples of available stimuli :

  • Humidity and gas
  • Inertial
  • Magnetic
  • Microphone
  • Optical
  • Pressure
